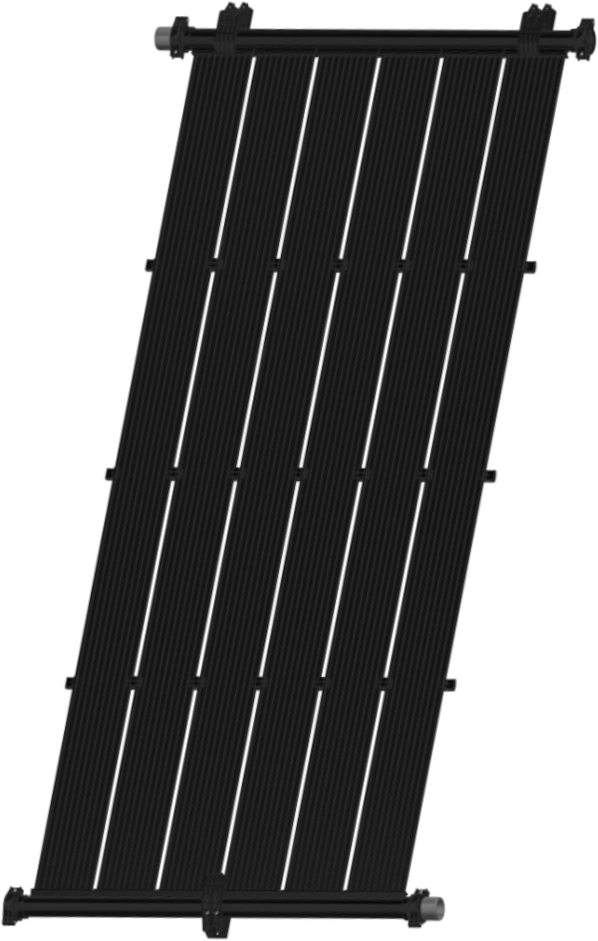

Rhino Platinum
Commercial Grade Rigid Panel Heating
Engineered & Manufactured for premium applications for pool heating across Australia, Rhino Platinum Systems are proudly made by Boss, Australia’s largest pool heating manufacturer since 1973.
Rhino Platinum is the World’s Only Rigid, Multilayered Panel System that is backed by an unbeatable 25 year factory supported warranty that covers both the product and cockatoo damage.
Panels Welded to Header Pipe
Built for harsh Australian climate conditions and resistance to cockatoos, the Rhino Platinum Rigid Solar Panels are welded to a solid 1.07m extruded header pipe with a robust 5mm wall thickness, ensuring longevity in the system.
Rhino Rigid Roof Mounts
A strapless mounting system allows for panel expansion and contraction with minimal roof penetrations. Boss provides solutions for systems in cyclone-prone regions, such as aluminum profiles designed to spread the screw fixing to the roof over a greater distance.
End Cap
Rhino End Caps are installed at opposing ends of the Rhino System to seal the header pipes. They are connected to the panels using Ring Clamp Assemblies.

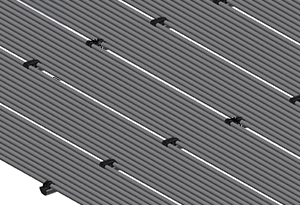

Multilayered Rigid Collector
The large 8mm ID round tube + web design boosts heat capture without allowing heat to escape between the tubes. The large 8mm tubes increases water flow and reduces back-pressure, enhancing energy absorption and heating efficiency.
Webs maximise heat gain even on windy days whilst allows tubes to expand and contract independently. No tie-down straps are needed even for exposed windy locations.
Rhino Panel Clips and Sleds
Rhino Rigid Panels are installed with minimal gap, ensuring maximum heating efficiency and value for your investment.
The Clips and Sleds also help prevent panel distortion and tube abrasion from thermal expansion, adding strength to the unit as well as allowing panels to “float” above the roof, keeping it clean and dry. Additionally, they maintain the alignment of individual collector strips for efficient operation and a neat appearance.
Tile Roof Bracket Mounting
The tile roof bracket mounting system allows for drill free mounting to tiled roofs. These are secured around two roof battens to provide greater security in high wind regions.
Flexible Coupling Assembly
Designed to bend and flex, the Rhino Flexible Coupling absorbs the differing thermal expansion and contraction rates of the PVC pipework and the Rhino panels, without placing undue stress on the connecting components, maximising the longevity of your system.
Leak-Proof Assurance
Rhino Rigid’s Ring Clamp helps secure header pipes together and along with a Rubber Seal O-Ring Design guarantees leak proof connections for the life of the system.
Premium, Commercial Grade Pool Heating, Proudly Australian Made & Owned
Rhino Platinum: Premium Rigid Solar Pool Heating Solutions
Designed for council pools, aquatic centres, swim schools and Olympic sized facilities, Rhino Platinum is Australia’s only true commercial grade rigid solar system. It sets the benchmark for performance, durability and return on investment.
When choosing Rhino Platinum Solar Panels, you’re getting a system that is:
- Proudly made in Melbourne using premium grade polypropylene. Rhino Platinum is built tough to endure Australia’s harshest conditions.
- Designed and engineered to resist damage from cockatoos, hail, UV exposure, pool chemicals and extreme winds.
- Australian backed with an unbeatable 25 year warranty, including our exclusive cockatoo damage cover.
Lower your pool heating costs with a fast return on investment, all while reducing your carbon footprint with an eco-friendly solution. Enjoy nationwide distribution, backed by local manufacturing and expert support.
Rhino Platinum is one of several ways to heat your pool. If your roof has an irregular shape or limited space, strip solar pool heating uses flexible matting that conforms to curves and tight areas. For year round coverage regardless of weather, a hybrid pool heating system pairs solar with a heat pump so you’re never relying on sun alone.
All Rhino components and fittings, including replacement end caps, ring clamps and flexible couplings, are available on our pool heating equipment page.
Want to know what Rhino Platinum can do for your pool? Get a free quote and our team will assess your site using satellite imaging to recommend the right setup.
Heating Your Pool With
Rhino Platinum Solar Panel Technology
Part Number
Multilayered Technology
Panel Width (mm)
Panel Length (mm)
Roof Coverage (m2)
Active Collector Areas (m2)
Panel Weight (Wet) (kg)
Rec. Flow Rate
Litres per minute per panel
Climate Care Certified
SRCC Certified
043_PAR6_018
Composite Solar Collector
1070
1675
1.77
1.5
12.02
7.1
YES
YES
043_PAR6_026
Composite Solar Collector
1070
2430
2.59
2.3
16.96
10.4
YES
YES
043_PAR6_034
Composite Solar Collector
1070
3195
3.40
3.0
21.35
13.6
YES
YES
043_PAR6_042
Composite Solar Collector
1070
3970
4.23
3.8
25.58
16.9
YES
YES
Part Number: 043_PAR6_018
Multilayered Composite Solar Collector
Panel Width: 1070mm
Panel Length: 1675mm
Roof Coverage: 1.77m2
Active Collector Area: 1.5m2
Panel Weight (Wet): 12.7kg
Rec. Flow Rate:
7.1L per minute per panel
Climate Care Certified
SRCC Certified
Part Number: 043_PAR6_026
Multilayered Composite Solar Collector
Panel Width: 1070mm
Panel Length: 2430mm
Roof Coverage: 2.59m2
Active Collector Area: 2.3m2
Panel Weight (Wet): 17.7kg
Rec. Flow Rate:
10.4L per minute per panel
Climate Care Certified
SRCC Certified
Part Number: 043_PAR6_034
Multilayered Composite Solar Collector
Panel Width: 1070mm
Panel Length: 3195mm
Roof Coverage: 3.40m2
Active Collector Area: 3.0m2
Panel Weight (Wet): 22.1kg
Rec. Flow Rate:
13.6L per minute per panel
Climate Care Certified
SRCC Certified
Part Number: 043_PAR6_042
Multilayered Composite Solar Collector
Panel Width: 1070mm
Panel Length: 3970mm
Roof Coverage: 4.23m2
Active Collector Area: 3.8m2
Panel Weight (Wet): 26.3kg
Rec. Flow Rate:
16.9L per minute per panel
Climate Care Certified
SRCC Certified
Part Number
Multilayered Technology
Panel Width (mm)
Panel Length (mm)
Roof Coverage (m2)
Active Collector Areas (m2)
Panel Weight (Wet) (kg)
Rec. Flow Rate
Litres per minute per panel
Climate Care Certified
SRCC Certified
043_PAR3_010
Composite Solar Collector
575
1675
0.96
0.7
6.4
3.8
YES
YES
043_PAR3_014
Composite Solar Collector
575
2430
1.39
1.1
8.8
5.5
YES
YES
043_PAR3_018
Composite Solar Collector
575
3195
1.83
1.5
10.8
7.3
YES
YES
043_PAR3_023
Composite Solar Collector
575
3970
2.28
1.9
12.9
9.1
YES
YES
Part Number: 043_PAR3_010
Multilayered Composite Solar Collector
Panel Width: 575mm
Panel Length: 1675mm
Roof Coverage: 0.96m2
Active Collector Area: 0.7m2
Panel Weight: 6.4kg
Rec. Flow Rate:
3.8L per minute per panel
Climate Care Certified
SRCC Certified
Part Number: 043_PAR3_014
Multilayered Composite Solar Collector
Panel Width: 575mm
Panel Length: 2430mm
Roof Coverage: 1.39m2
Active Collector Area: 1.1m2
Panel Weight: 8.8kg
Rec. Flow Rate:
5.5L per minute per panel
Climate Care Certified
SRCC Certified
Part Number: 043_PAR3_018
Multilayered Composite Solar Collector
Panel Width: 575mm
Panel Length: 3195mm
Roof Coverage: 1.83m2
Active Collector Area: 1.5m2
Panel Weight: 10.8kg
Rec. Flow Rate:
7.3L per minute per panel
Climate Care Certified
SRCC Certified
Part Number: 043_PAR3_023
Multilayered Composite Solar Collector
Panel Width: 575mm
Panel Length: 3970mm
Roof Coverage: 2.28m2
Active Collector Area: 1.9m2
Panel Weight: 12.9kg
Rec. Flow Rate:
9.1L per minute per panel
Climate Care Certified
SRCC Certified

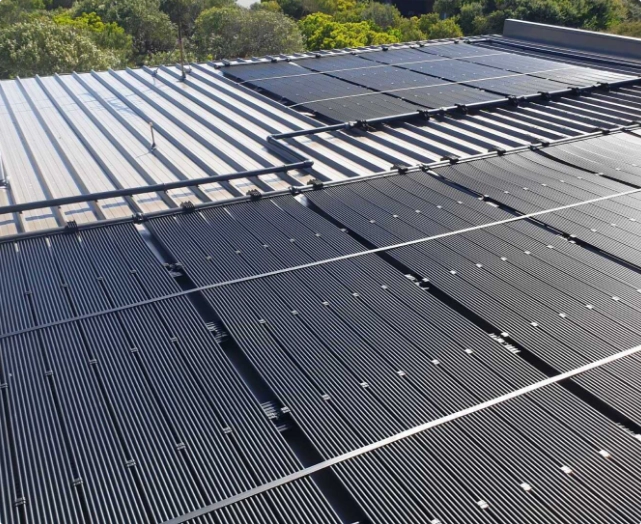

Our Most Recent Commercial Rhino Platinum Rigid Installation
February, 2025 – May, 2025
Rhino platinum rigid panel system with heat pumps hybrid
Olympic, Commercial Indoor & Outdoor Swimming centre in Victoria’s south west
An aquatic centre recently upgraded its pool heating system as part of a broader facility rejuvenation and sustainability strategy. The project combined solar thermal heating for the large commercial outdoor pool with high efficiency electric heat pumps for the indoor aquatic areas. This hybrid solution was chosen to reduce energy costs, enable reliable year round operation, and support council targets (Net Zero by 2040.)
The onboarding process involved detailed planning to ensure effective pool coverage and system performance. Sophisticated mapping tools were used to assess layout, orientation and available roof space, helping to optimise solar gain and efficiency. Reputable local installers with commercial pool heating experience were engaged to ensure the system was also delivered to a high standard.
All Boss’ major systems are Australian made, supporting the local council criteria and offering strong warranty support. The solar system was selected for its long term cost savings and environmental benefits, while the heat pump system delivered efficient performance for the indoor pools. Developed through remote assessment and finalised by council and site inspection, this project shows how aquatic facilities can achieve sustainable, future ready operations with minimal disruption.
Our Rhino Rigid Solar Gallery and Installations
Further Information and Resources on Rhino Platinum
Ready to jump in and get the most out of your next swimming season?
Get a quote or call 03 9561 2159. Let our experts guide you to a heating solution best suited to your lifestyle and budget.
